Описание:

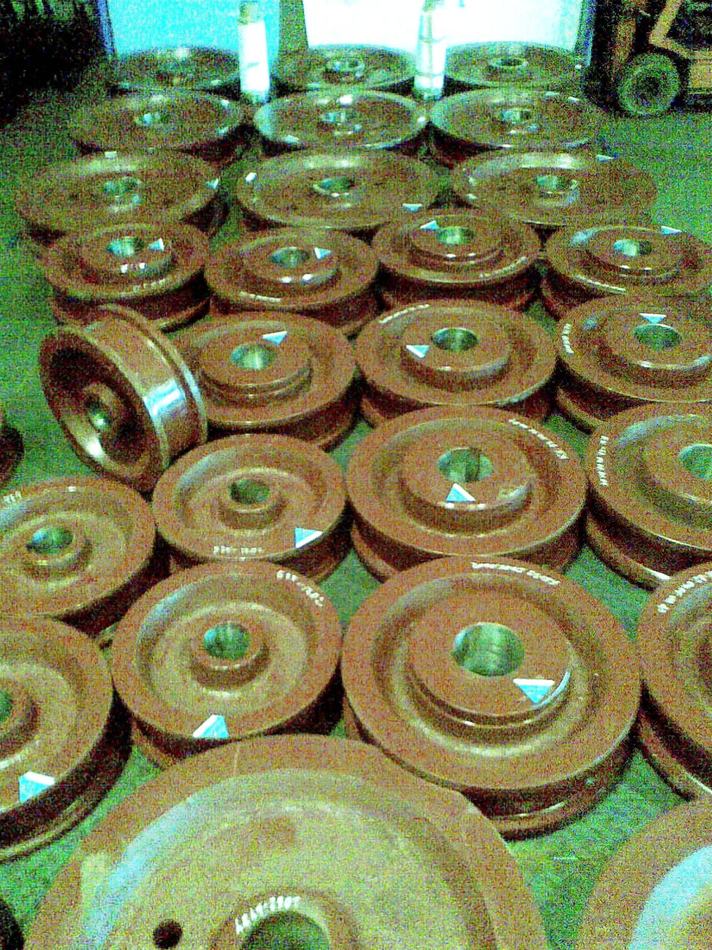

Two types of wheels must be manufactured:

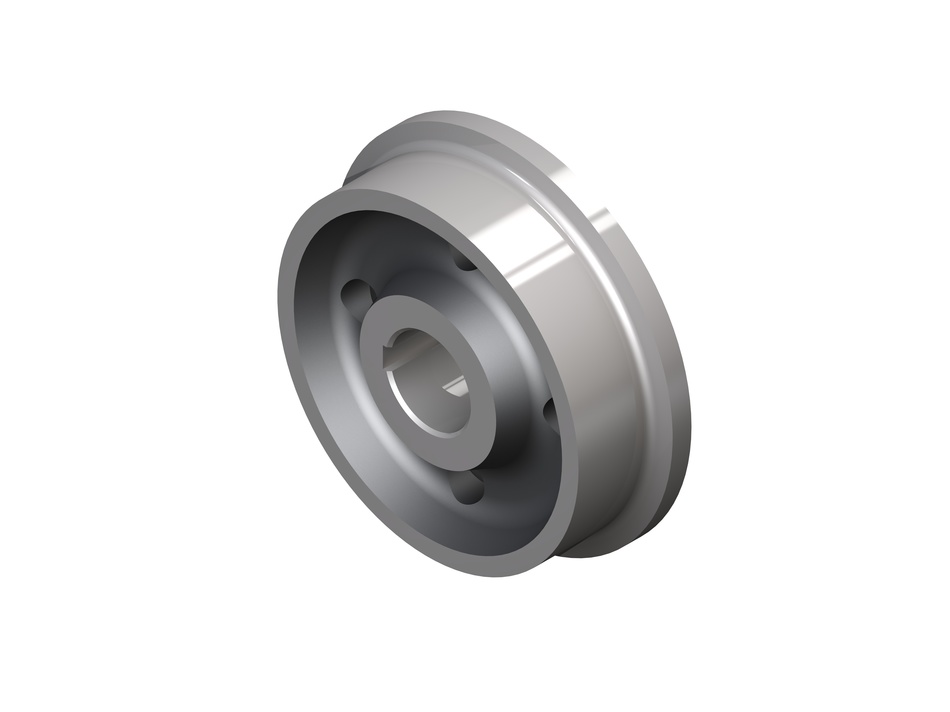

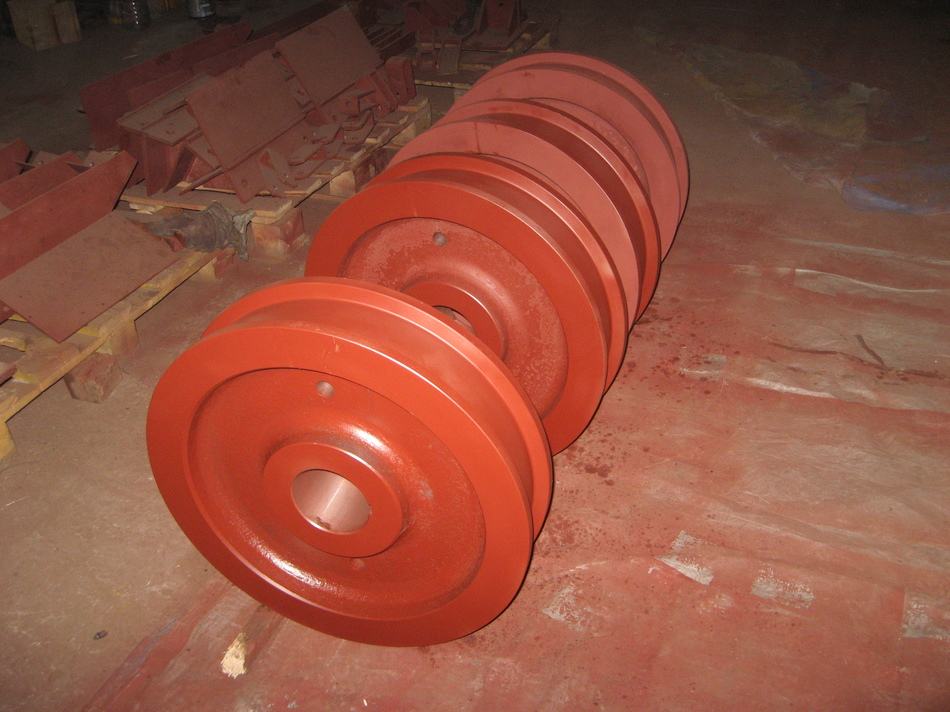

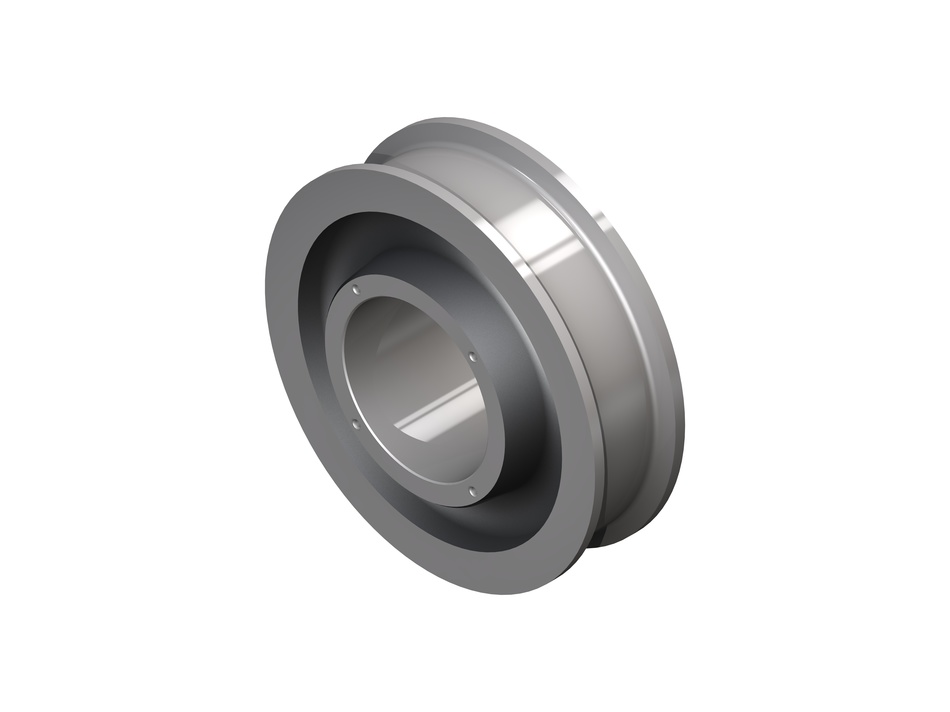

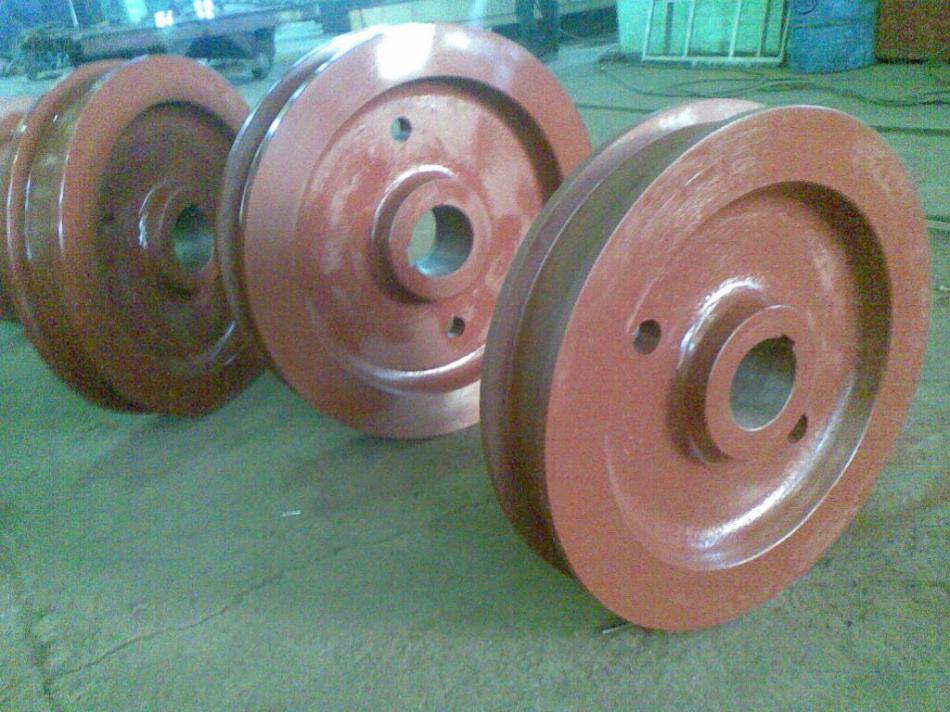

К2Р – double-flange;
Drawing 1.
Main dimensions and weight of K2P wheels must comply with those in Fig. 1 and Table. 1.
Table 1.
|
DD (prel. diff. by h11) |
D1 (prel. diff. by h16) |
B (prel. diff. by h16) |
B (prel. diff. by h16) |
weight, kg (max) |
|
200 |
230 |
60 |
90 |
15 |
|
250 |
290 |
70 |
110 |
30 |
|
320 |
360 |
70 80 |
110 120 |
45 50 |
|
400 |
450 |
80 90 100 |
130 140 150 |
80 80 90 |
|
500 |
550 |
90 100 |
150 150 |
145 145 |
|
560 |
600 |
90 100 |
130 150 |
200 210 |
|
630 |
680 |
90 100 |
140 150 |
220 250 |
|
710 |
770 |
100 130 150 |
150 180 200 |
300 380 410 |
|
800 |
880 |
110 130 150 170 |
170 190 210 250 |
330 360 410 640 |
|
900 |
980 |
130 150 170 |
190 210 250 |
460 530 630 |
|
1000 |
1080 |
170 |
250 |
890 |

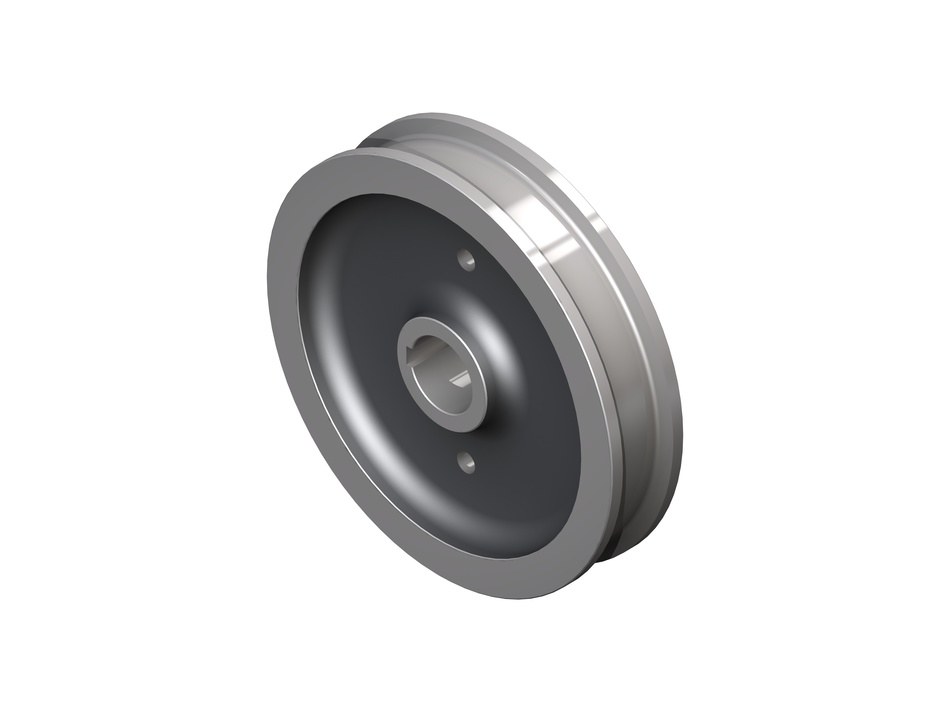

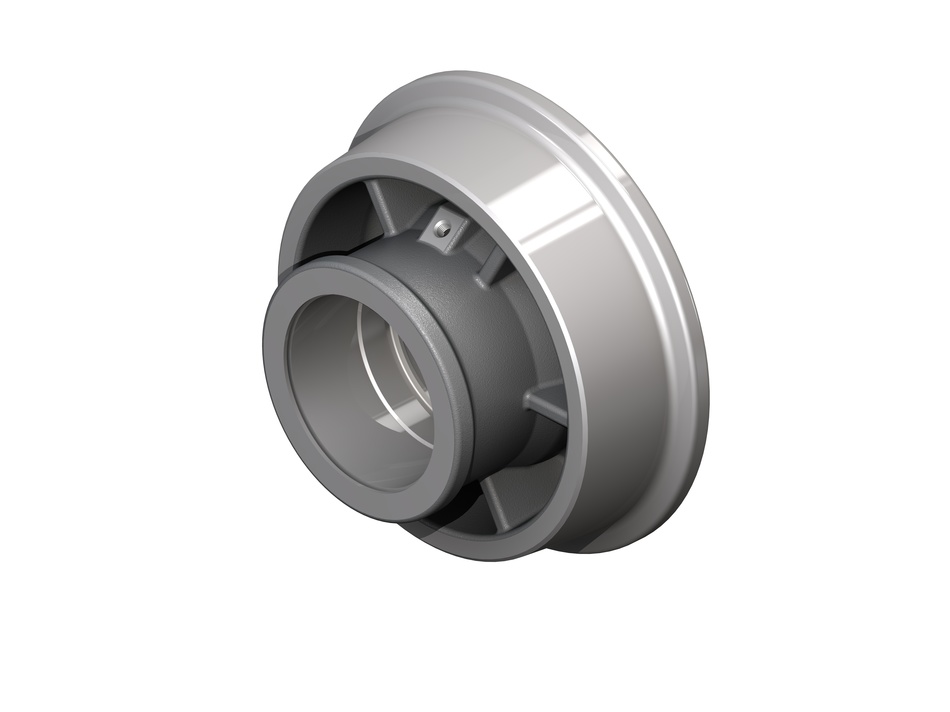

К1P - single-flange
Drawing 2.
Main dimensions and weight of K1P wheels must comply with those in Fig. 2 and Table. 2.
D (prel. diff. by h11) | D1 (prel. diff. by h16) | B (prel. diff. by h16) | B1 (prel. diff. by h16) | weight, kg (max) |
200 | 230 | 60 | 75 | 11 |
250 | 290 | 70 | 90 | 20 |
320 | 360 | 80 | 100 | 31 |
400 | 450 | 106 | 130 | 61 |
500 | 550 | 125 | 150 | 113 |
