Crusher DLSh 160x250

Crusher DLSh 160x250

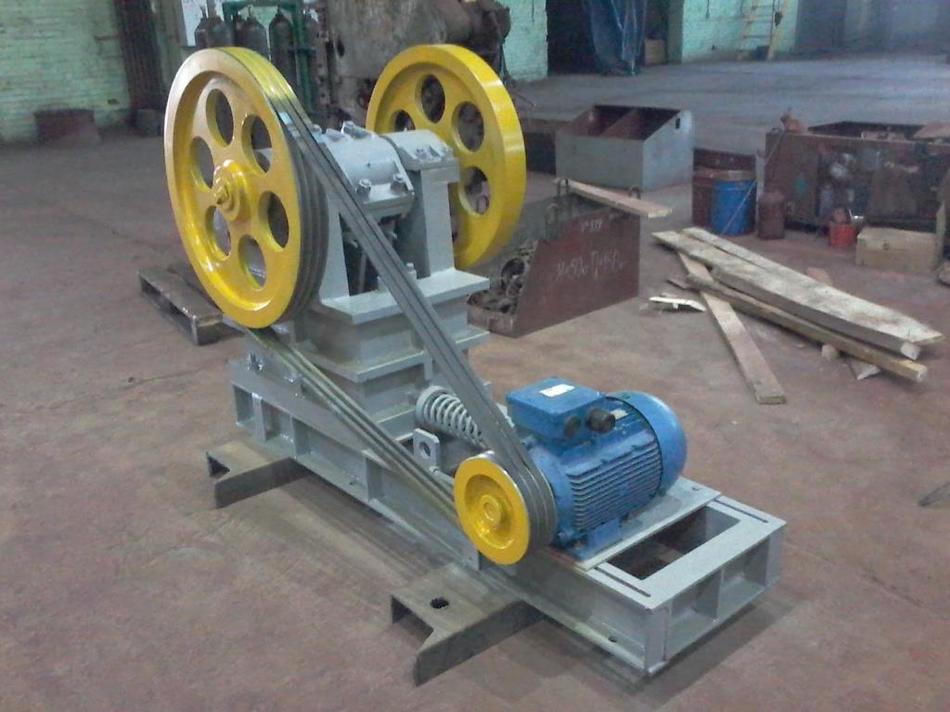

Jaw crusher SMD-115 (SMD-508) is designed for fine crushing of rocks and other materials, which tensile strength is at least 2500 kg / cm in compression. It belongs to the crushers with a complex swinging of jaw plate.

Material is crushed by crushing and partial abrasion between the crushing plates one of which is fixed, while the other is swinging and shuttling thereby pulling the material in the crusher head. Dimensions of crushed material depend on the size of exit slit.

Описание:

1 PURPOSE

Jaw crusher SMD-115 (SMD-508) is designed for fine crushing of rocks and other materials, which tensile strength is at least 2500 kg / cm in compression. It belongs to the crushers with a complex swinging of jaw plate.

Material is crushed by crushing and partial abrasion between the crushing plates one of which is fixed, while the other is swinging and shuttling thereby pulling the material in the crusher head. Dimensions of crushed material depend on the size of exit slit.

2 TECHNICAL CHARACTERISTICS

  • Dimensions of receiving opening, 160x250 mm
  • Size of load material, up to 150 mm
  • width of exit slit, 13-45 mm
  • ПProduction (at 30 mm width of exit slit), 3 m3/h
  • Eccentric shaft rotation frequency: 320 rpm
  • Motor capacity: 7.5 kW
  • Motor shaft rotation frequency: 1000 rpm
  • Dimensions, 1970х920х1350 mm
Weight, 1711±50 kg
