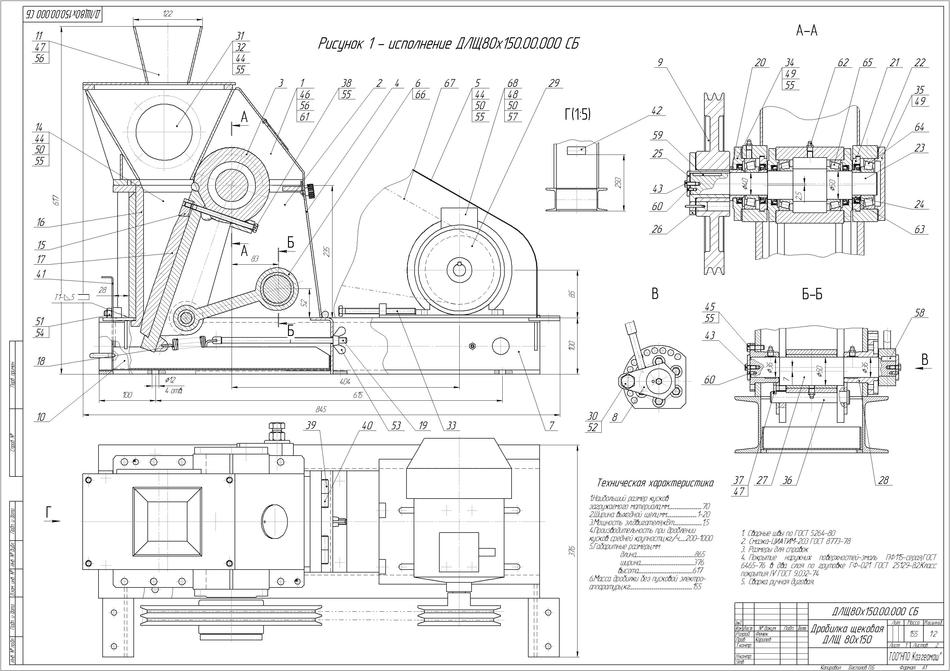

Crusher DLSh 80x150
Jaw crusher DLSh 80x150 is designed for fine crushing of rocks and other materials in the laboratory, which tensile strength is at least 2500 kgf / cm² in compression.
Описание:
1 PURPOSE
Jaw crusher DLSh 80x150 is designed for fine crushing of rocks and other materials in the laboratory, which tensile strength is at least 2500 kgf / cm² in compression.
2 TECHNICAL CHARACTERISTICS
1.Dimensions of receiving opening, mm
- length 150
- width 80
- maximum size of load material, 70 mm
- width of exit slit, mm
- narrowest width 1
- extreme width 20
2. Electric motor
- capacity, 1.5 kW
- rotary speed, 1500 rpm
3. Production in crushing of medium size pieces, m³/h min, mm
- 3 - 0.05
- 6 – 0.10
- 10 – 0.15
- 20 – 0.2
4. Dimensions of crusher, mm, max
- length 870
- width 580
- height 1310
