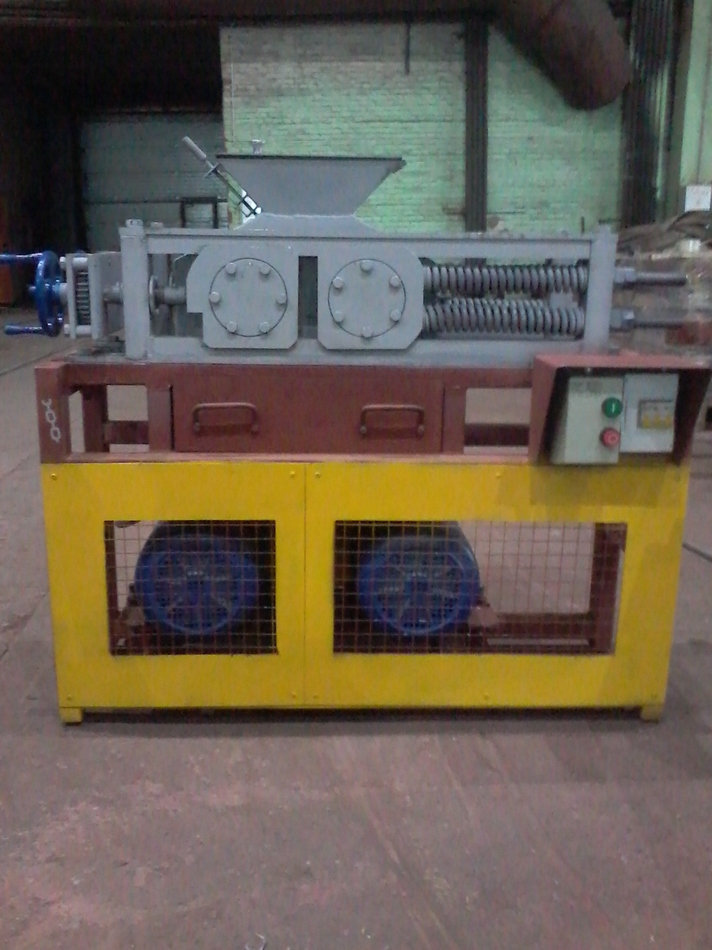

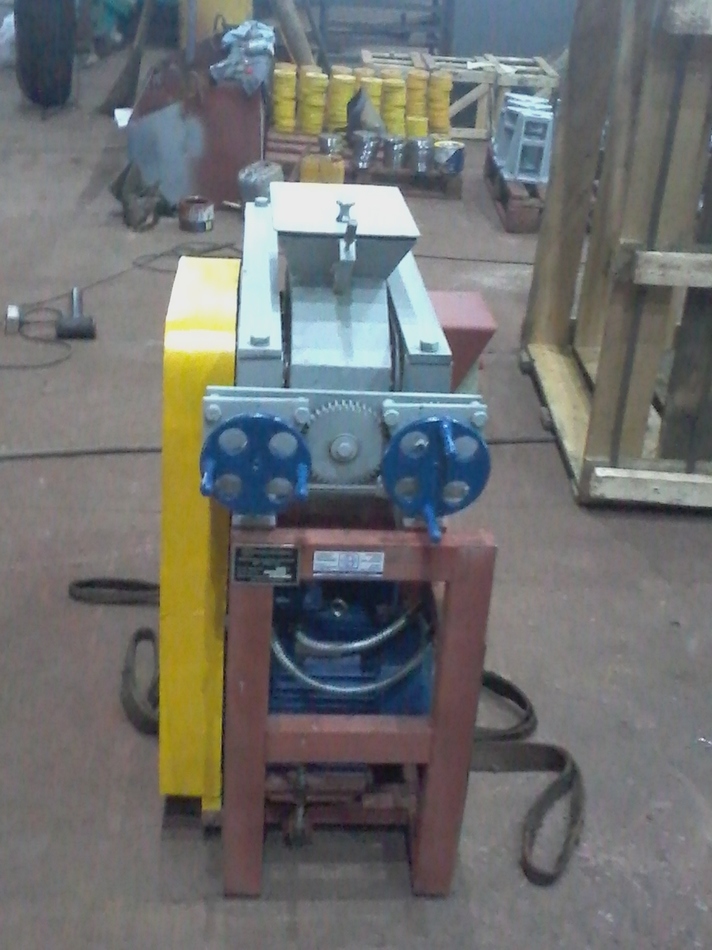

Technical characteristics of roll crusher DVG 200x125

• dimensions of loading gate – 85x25 mm
• size of crushed rock – up to 12 mm (!)
• distance between rolls – 0-12 mm
• roll width – 125 mm
• roll diameter – 200 mm
• production – 0.7 t/h max.
• minimum grain size of crushed material – 0.25 mm
• electric motor capacity – 2x1.1 kW
• electric motor rpm frequency – 1500 rpm
• circuit voltage – 380 V, 50 Hz
• dimensions (L-W-H) - 690х390х990mm
• weight – 245 kg
