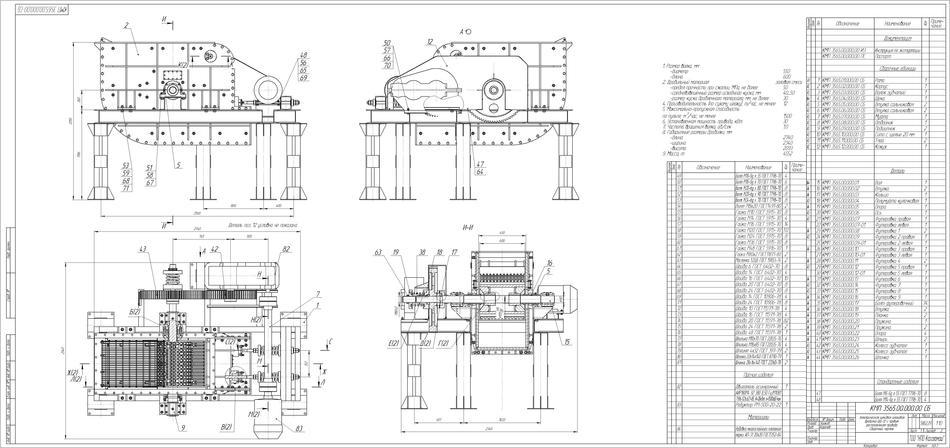

Crusher ShD-12

tensile strength in compression, Mpa, 50 max

Описание:

1. Roll size, mm

  • diameter - 550
  • length - 600

2. Crushing material: as mixture

  • tensile strength in compression, Mpa, 50 max
  • average size of initial piece – 40…50 mm
  • size of crushed rock – 30 mm max

4. Production (by dry slag) – 12 t/h min

5. Maximum efficient rate by pulp slurry – 1500 m/h min

6. Installed drive capacity – 30 kW

7. Shaft rotation frequency – 1.0 r/sec

8. Dimensions of crusher, mm:

  • length - 2740
  • width - 2340
  • height - 2093
9. Weight, t: 4552
