Function and purpose:

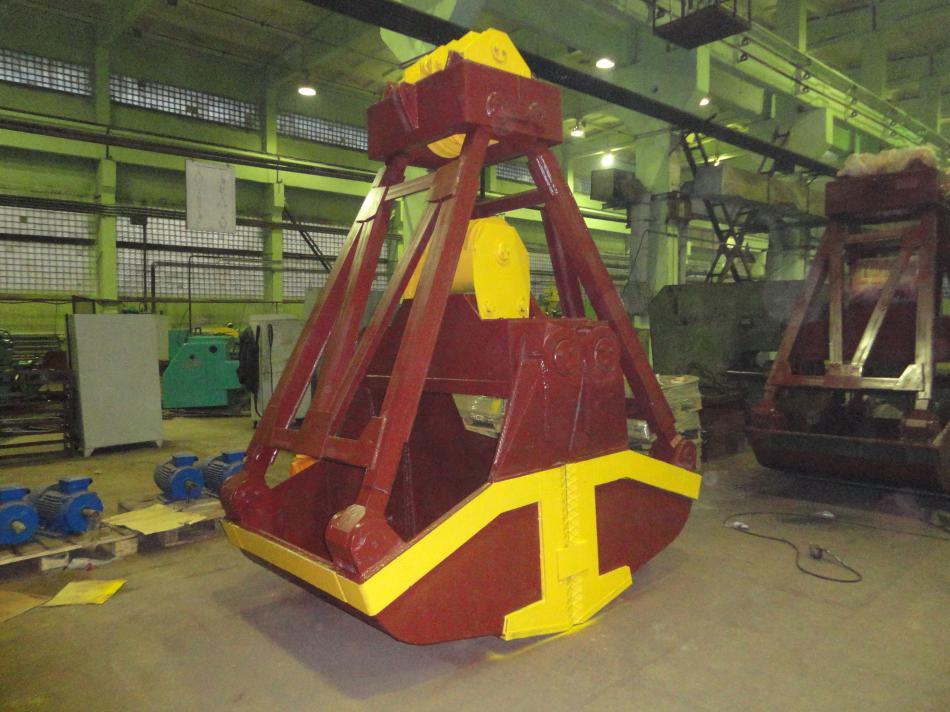

Grab bucket is used as a load-handling device for bulk cargo for lifting cranes. It is manufactured according to GOST 24599-87

BASIC CHARACTERISTIC DATA

Crane capacity – 10 t

Grab bucket weight - 4.8 t max.

Cargo weight, t - 5

Estimated volume, m^{3 –} 2

Struck bucket capacity at:

• α= 0⁰ (V₀), м^{3 -} 1,6 / α= 0⁰ (V₀), m^{3 –} 1.6
• α= 30⁰ (V₃₀), м^{3 –} 2 / α= 30⁰ (V₃₀), m^{3 -} 2

Product density, t/m³ , 2.5 max.

Number of ropes - 4

Rope diameter, mm – 17.5-18.0

Parts of line - 6

Cargo group as per GOST 24599-87 - С3

Number of grab jaws - 2
