Function and purpose:

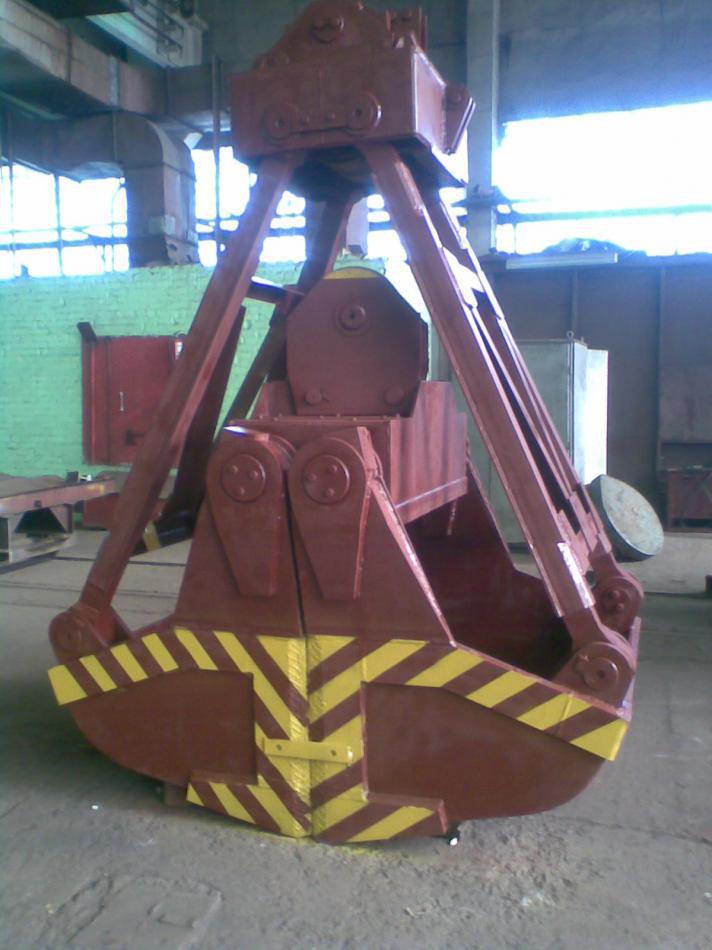

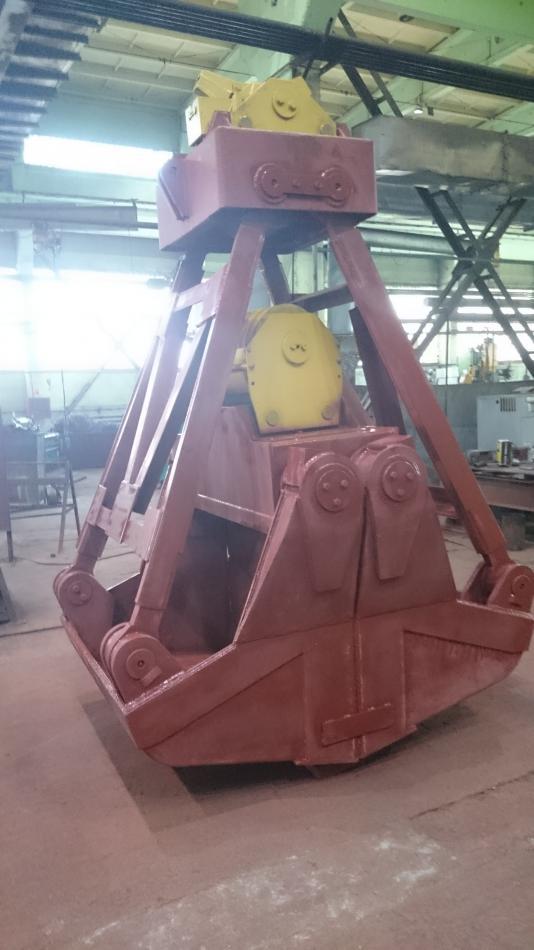

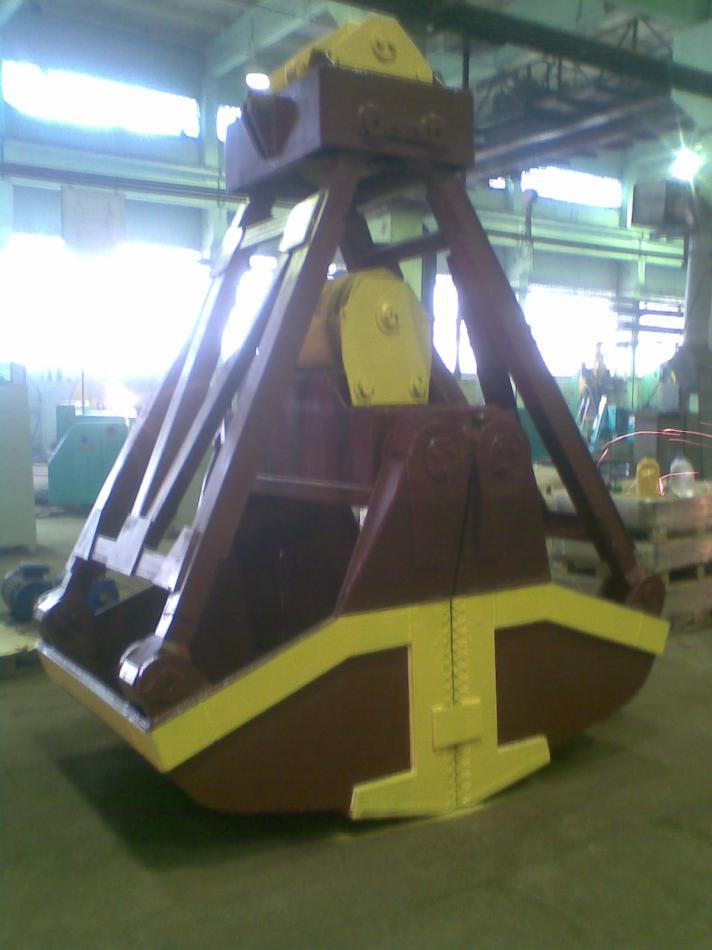

Grab bucket is used as a load-handling device for bulk cargo for lifting cranes. It is manufactured according to GOST 24599-87

BASIC CHARACTERISTIC DATA

Crane capacity, t - 16

Grab bucket weight, t, - 4.5 max.

Struck bucket capacity at:

• α= 0⁰ (V₀), м^{3 -} 1,4 / α= 0⁰ (V₀), m^{3 –} 1.4
• α= 30⁰ (V₃₀), м^{3 -} 2,6 / α= 30⁰ (V₃₀), m^{3 –} 2.6

Product density, t/m³ , 2.5 max.

Number of ropes - 4

Rope diameter, mm – 19.5

Parts of line - 4

Cargo group as per GOST 24599-87 - Т1

Number of grab jaws - 2
