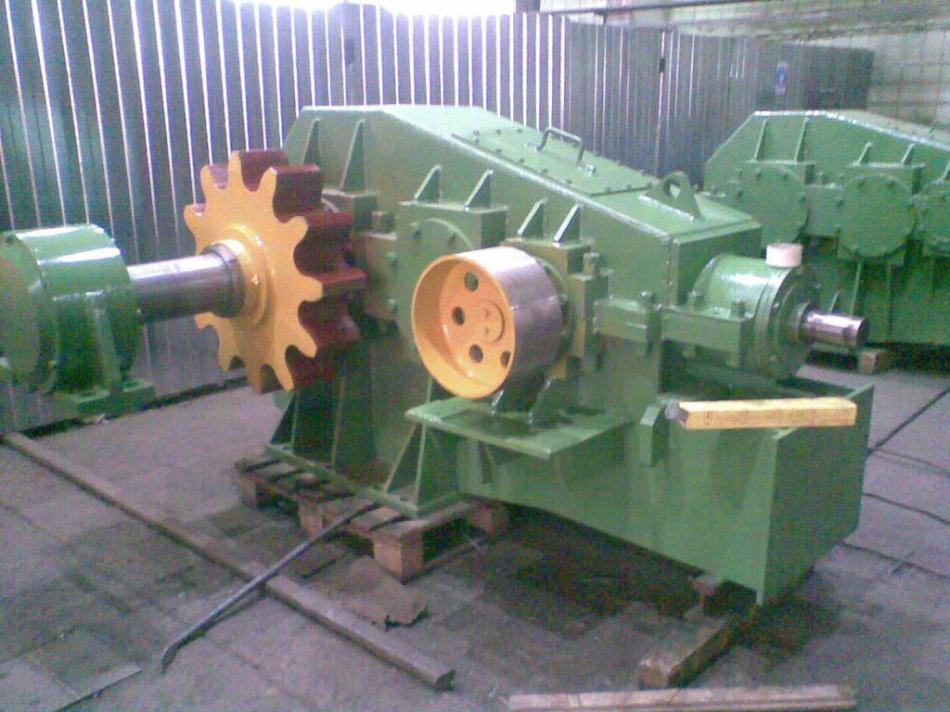

BASIC CHARACTERISTIC DATA AND CHARACTERISTICS OF DRUM DRIVE GEAR UNIT UPM

odule (1^st, 2^nd and 3^rd stages) – 7; 8; 12

Ratio – 61, 47

Maximum torque moment at output shaft – 660654 kgf/cm

Input speed – 1450 rpm

Output speed – 23.5 rpm

Type of toothed gearing grease – filling. Industrial oil I 40 GOST 20799-88

Main chamber – 221 l

Bevel wheel chamber – 40 l

Type of gear unit bearing grease – spraying

Dimensions, mm

• length - 2525
• width - 1946
• height - 1404

Weight, kg: 5650
