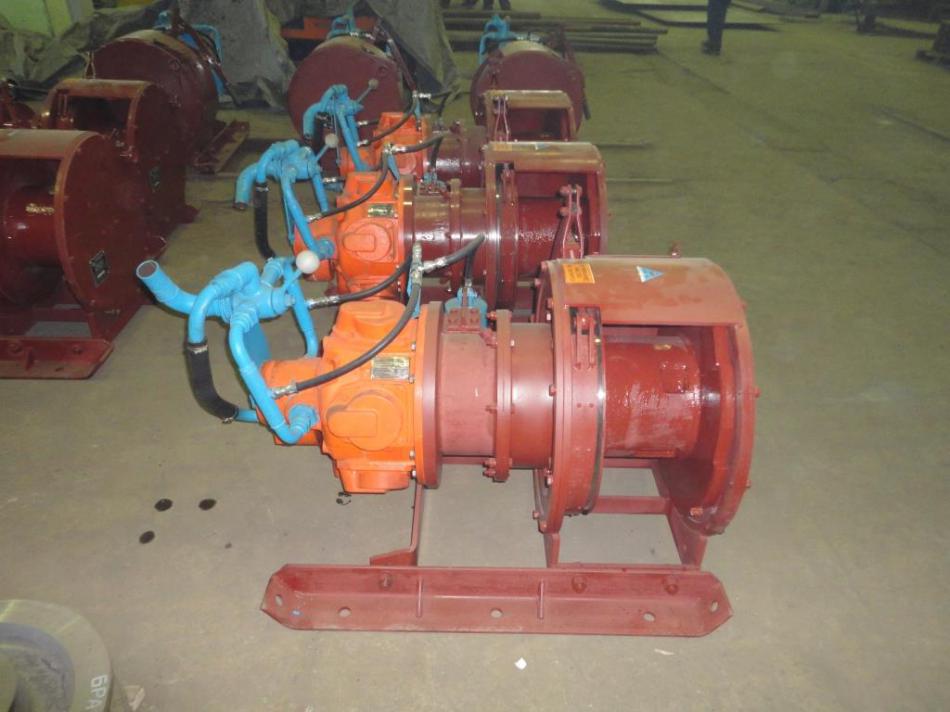

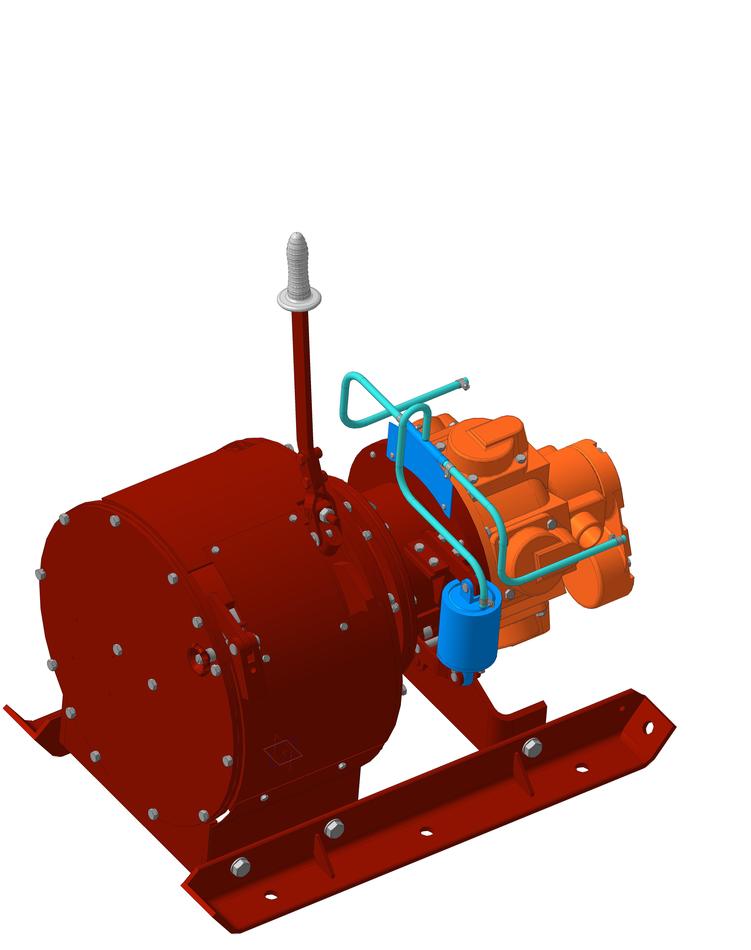

Mine winch SHV-710

The winch is designed for cargo and equipment movement, loading and unloading, assembly and disassembly operations in mines.

Power consumption: compressed air with a pressure of 0.5-0.6 MPa

Type: mine winch SHV-710

Type of pneumatic motor: P 8-12

Capacity/number of revolutions: 8 kW/12.5 rpm

Effective rope length – 150 m

Pulling force – 7.1 kN

Weight, kg: 225
