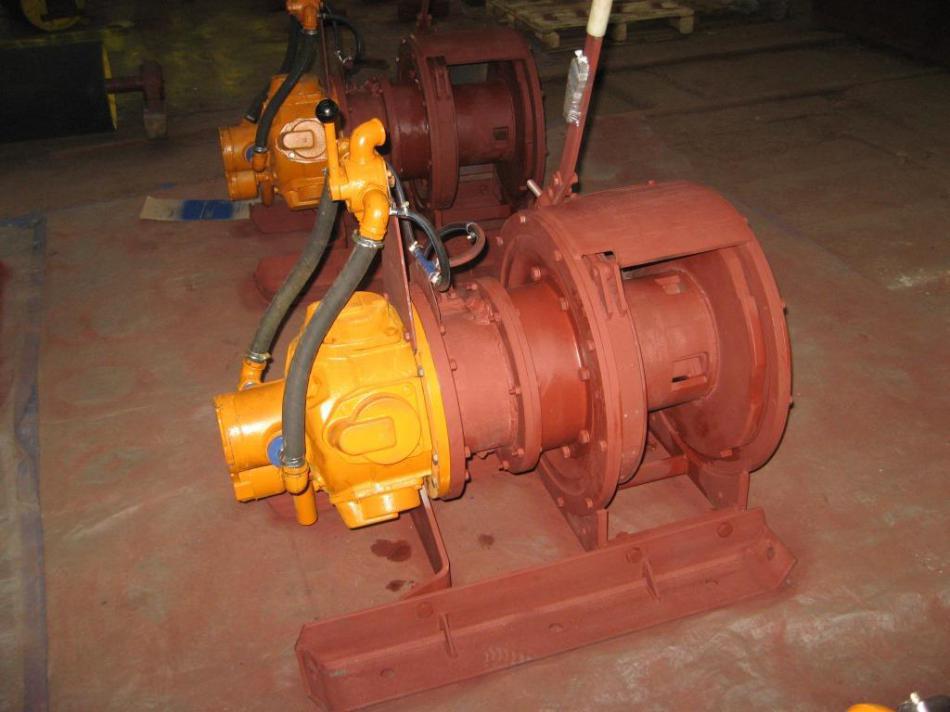

Auxiliary mine winch SHVA 18.5-0.25P

Auxiliary winch is designed for cargo and equipment movement, loading and unloading, assembly and disassembly operations in mines. Power consumption: compressed air with a pressure of 0.5-0.6 MPa

TECHNICAL PARAMETERS

Pulling force of rope, N

• On the first coiling row - 39000
• On the last coiling row - 24000
• Average - 31500

Rope speed on the average diameter of a drum – 0.25 m/s

Rope diameter – 15 mm

Coiling length of a drum (coiling capacity of a drum, dm³ – 153 (35))

Pneumatic motor P12-12 - 9 kW

Winch dimensions – 1150х830х1175 mm

Weight, kg: 590
