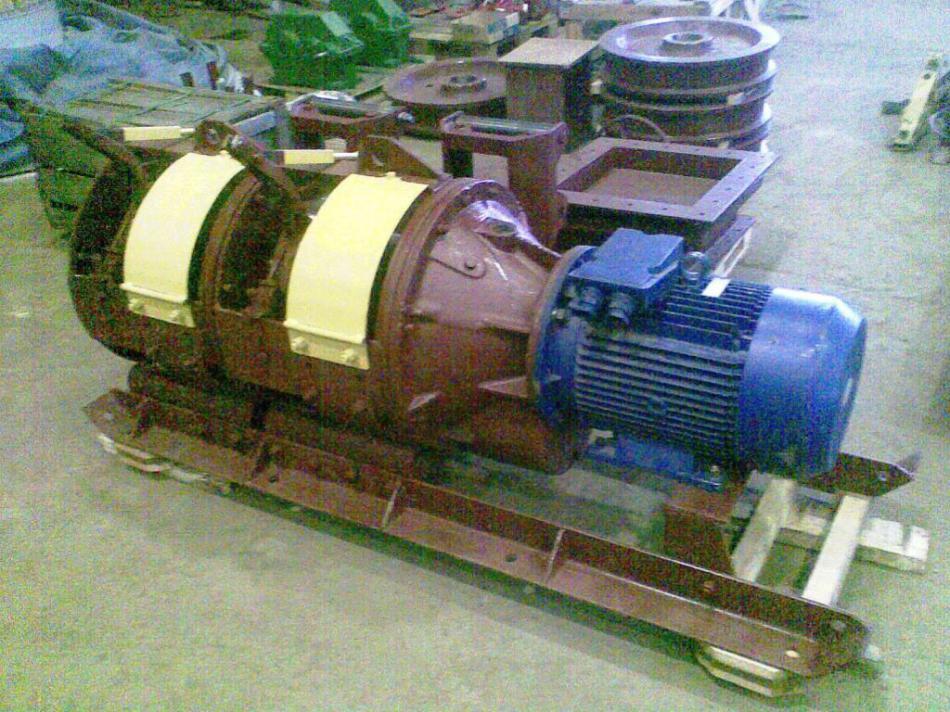

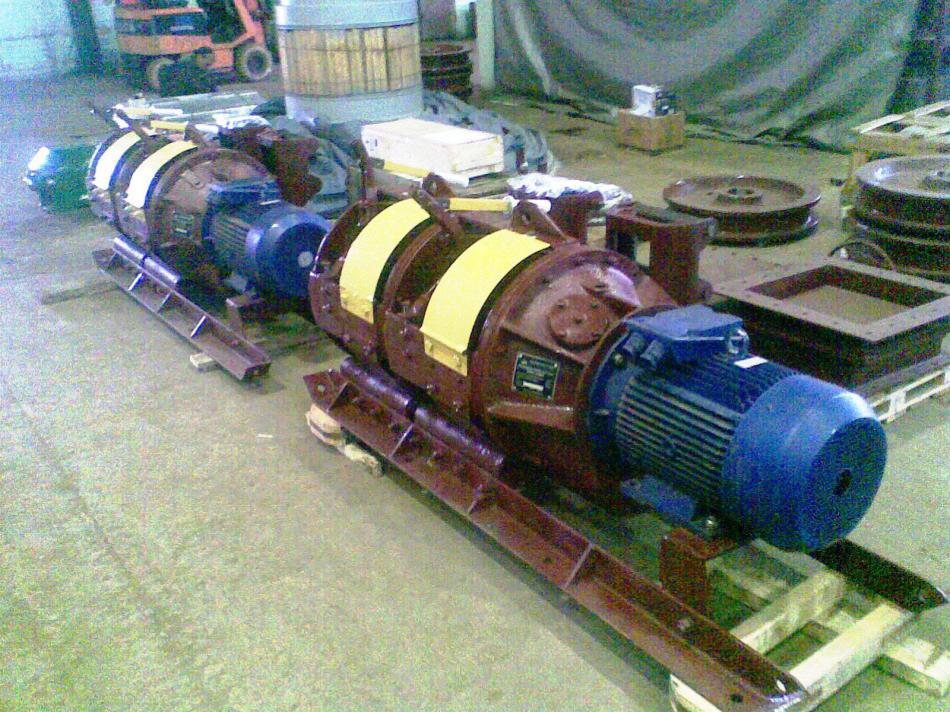

Scraper winches with coaxial electric motor location 30LS-2C

Double drum scraper winches with coaxial electric motor location is designed to deliver a broken rock mass in underground mining.

2. TECHNICAL CHARACTERISTICS

Nominal motor rating – 30 kW

Operating drum pulling force – 2800 kg

Medium speed of drum – 1.2 m/s

Medium speed of outhaul drum – 1.61 m/s

Operating rope diameter – 15 mm

Coiling length of a drum – 90 m

Dimensions - 1750х880х820 mm

Weight, kg: 1320
