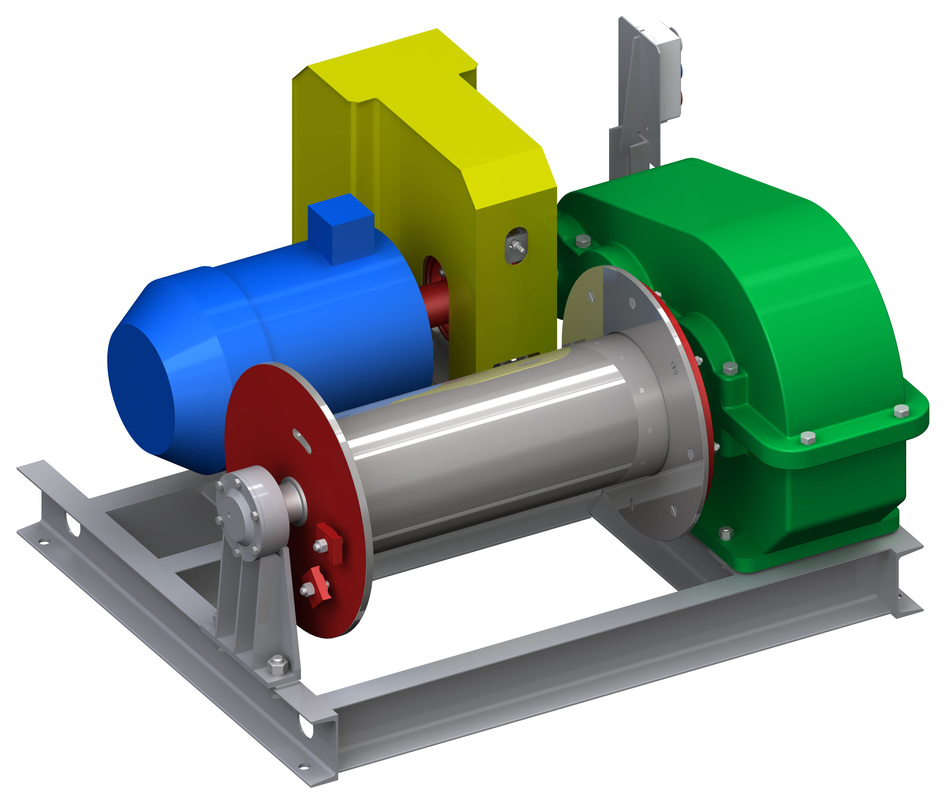

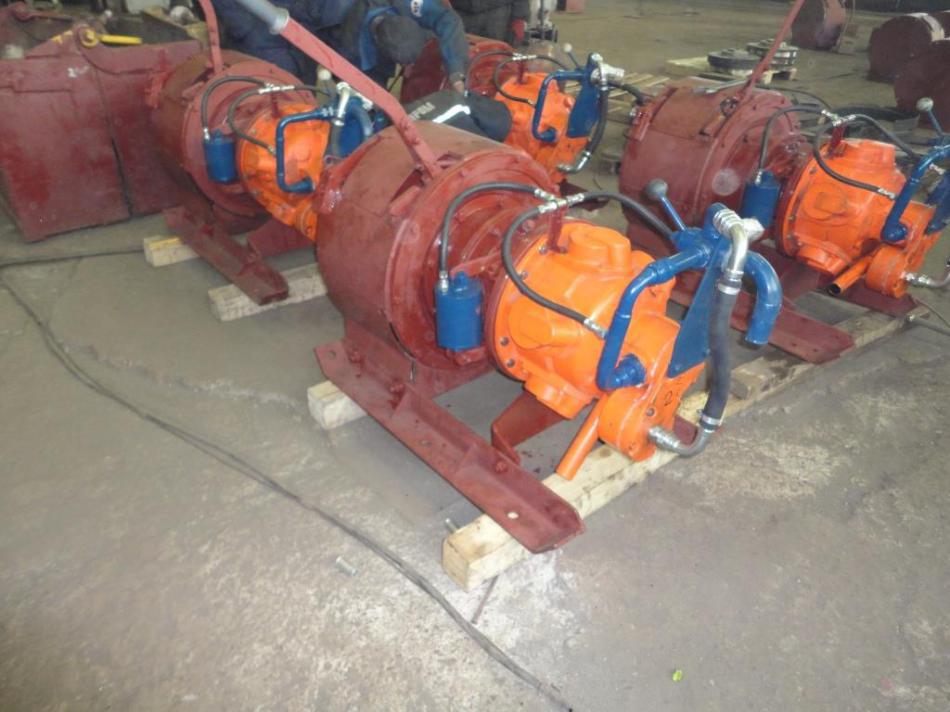

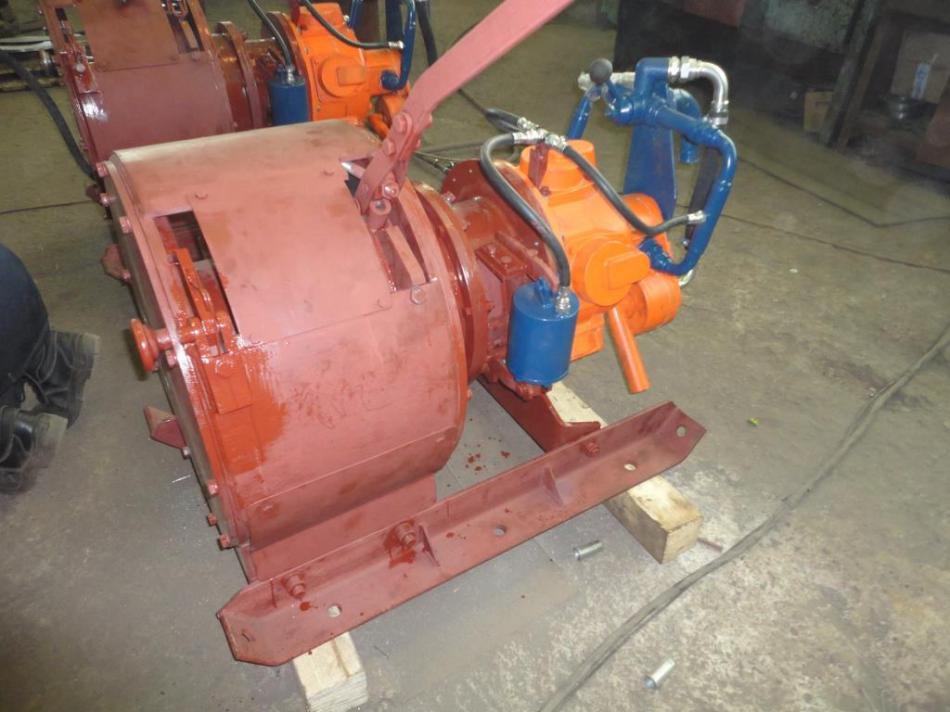

PURPOSE

The winch is designed for lifting and transport operations, shifting of cargo weighing up to 5 t in construction, installation and other works. It can be used for the assembling of mechanisms and devices required in construction, installation and other works. Operating position of winch is fastening on level ground.

The winch is not intended for lifting people.

Ambient class U, category 2 as per GOST 15150-69.

The winch is designed to operate under the following conditions:

• environment - non-explosive;
• ambient temperature: +40°С - 40°С;
• ambient temperature: +40°С - 40°С;
• operating mode – low duty;
• operating voltage – 380 V, current frequency – 50 Hz.

TECHNICAL CHARACTERISTICS

• Pulling force – 5000 kgf
• Rope speed on the first layer – 0.25 m/s

• Coiling length of a drum – 250 m

• Electric motor ________________, kW - ____

• Ropediameter – 22 mm

• Gear unit ___________________ ratio - 50

• Brake – TKG-200

• Winch dimensions - 1543х1272х783 mm
