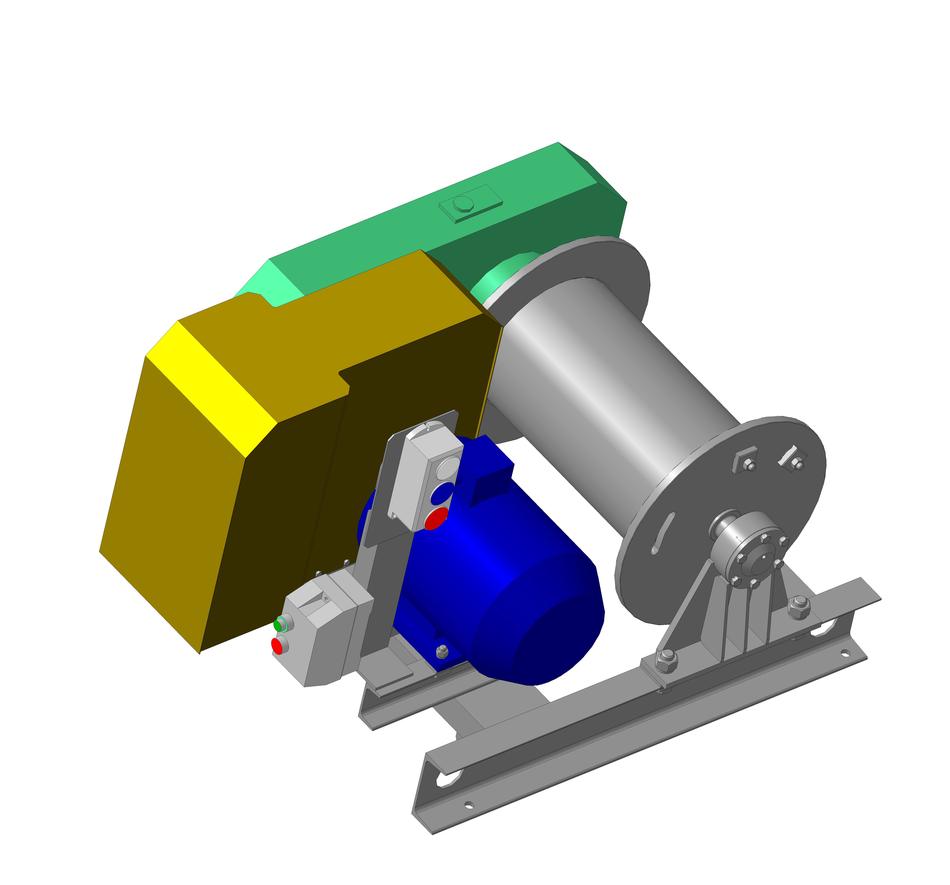

Winch TEL-2

The electric winch is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction lifting devices.

Описание:

PURPOSE

The electric winch is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction lifting devices.

The winch is not intended for lifting people.

The winch is designed to operate under the following conditions:

  • environment - non-explosive;
  • ambient temperature: +40°С - 40°С;
  • operating position - fastening on level ground;
  • operating mode – low duty;
  • operating voltage – 380 V, current frequency – 50 Hz

Basic characteristic data

Pulling force – 2000 kgf

Rope speed on the first layer – 0.25 m/s

Drum diameter – 300 mm

Coiling length of a drum – 50 m

Electric motor capacity at duty cycle = 40% - 11 kW

Rope diameter – 14 mm

Gear unit 1C3U-200-100-11MU1, ratio – 100

Brake TKG-200

Winch dimensions – 1162.5х898х760 mm

Winch weight w/o rope, kg – 600
