Winch TEL-5

The electric winch TEL-5 is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction lifting devices.

Описание:

PURPOSE

The electric winch TEL-5 is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction lifting devices.

The winch is not intended for lifting people.

The winch is designed to operate under the following conditions:

  • environment - non-explosive;
  • теambient temperature: +40°С - 40°С;
  • operating position - fastening on level ground;
  • operating mode – low duty;
  • operating voltage – 380 V, current frequency – 50 Hz

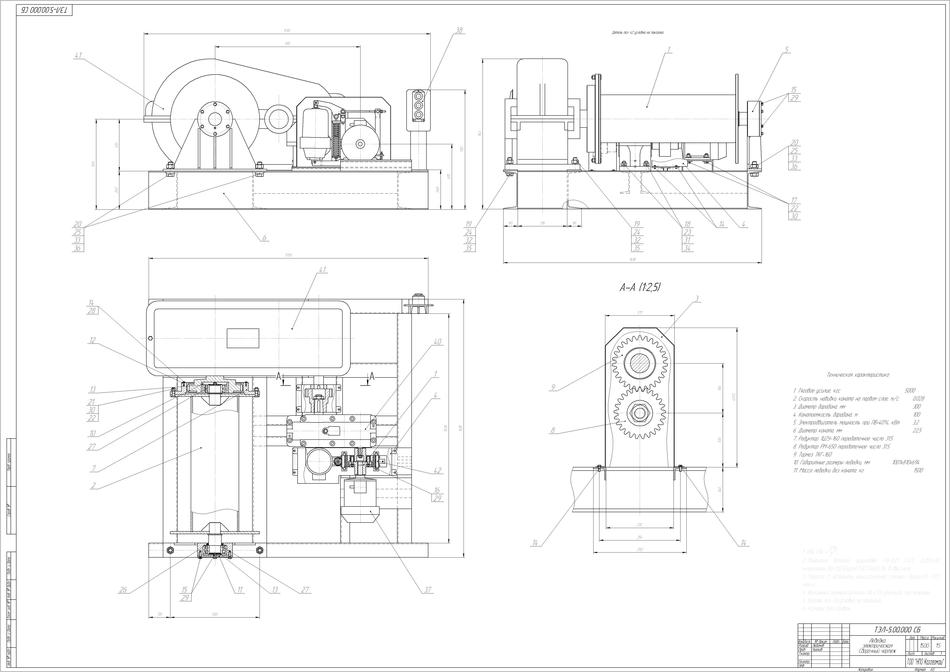

Basic characteristic data

  • Pulling force – 5000 kgf
  • Rope speed on the first layer – 0.028 m/s
  • Drum diameter – 300 mm
  • Coiling length of a drum – 220 m
  • Electric motor capacity at duty cycle = 40% - 3.0 kW
  • Rope diameter – 22.5 mm
  • Gear unit 1C2U-160, ratio – 31.5
  • Gear unit PM-650, ratio – 31.5
  • Brake TKG-160
  • Winch dimensions – 1650х1750х943 mm
  • Winch weight w/o rope, kg – 1500
