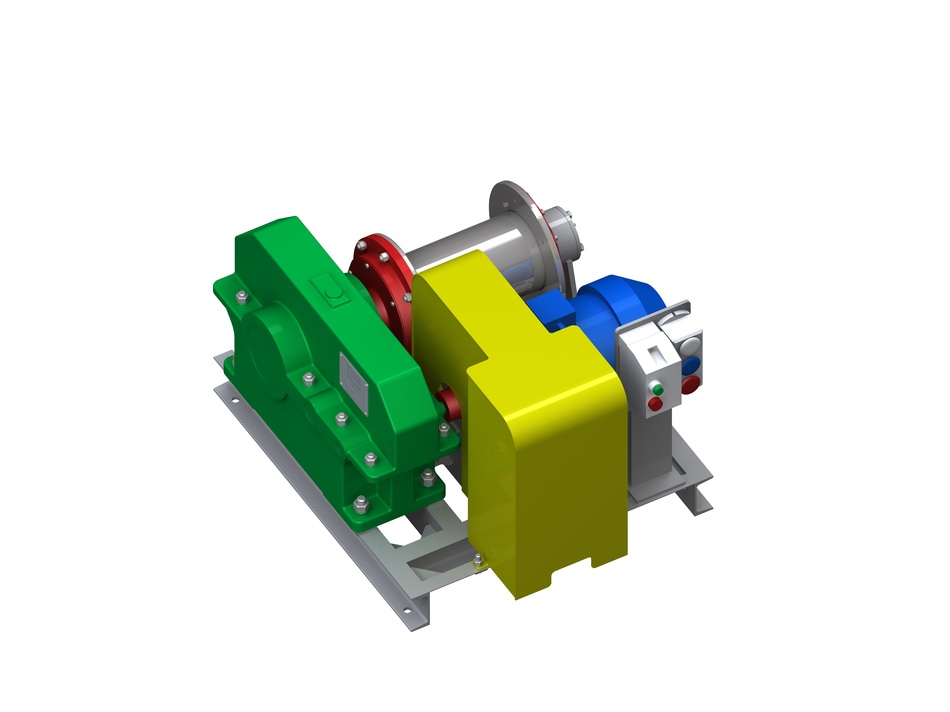

Winch TEL1
The winch is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction lifting devices.
Описание:
PURPOSE
The winch is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction lifting devices.
The winch is not intended for lifting people.
The winch is designed to operate under the following conditions:
- environment - non-explosive;
- ambient temperature: +40°С - 40°С;
- operating position - fastening on level ground;
- operating mode – low duty;
- operating voltage – 380 V, current frequency – 50 Hz
Basic characteristic data
- Pulling force – 1000 kgf
- Rope speed on the first layer – 0.3 m/s
- Drum diameter – 180 mm
- Coiling length of a drum – 50 m
- Electric motor capacity at duty cycle = 40% - 4 kW
- Rope diameter – 8.8 mm
- Редуктор 1Ц2У-200 передаточное число -19,79 / Gear unit 1C2U-200, ratio – 19.79
- Тормоз ТКГ-160 / Brake TKG-160
- Габаритные размеры лебедки, мм - 964х783х611 / Winch dimensions - 964х783х611 mm
