PURPOSE

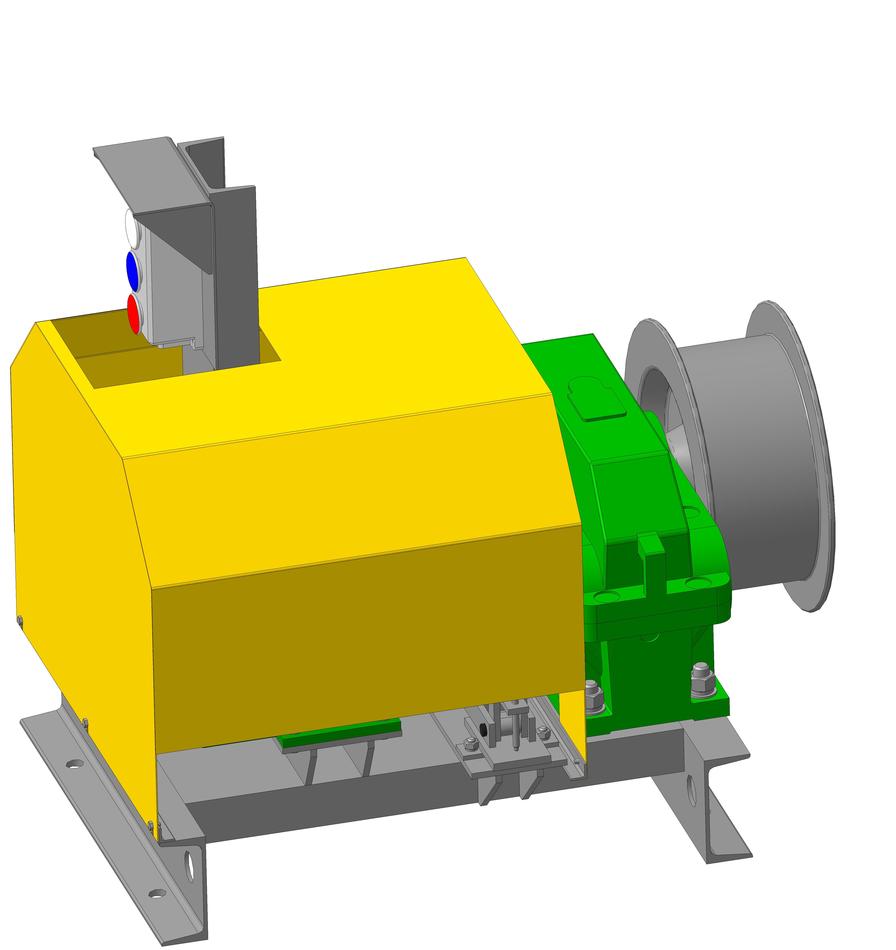

The electric winch TL-7A-1 is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction lifting devices.

The winch is not intended for lifting people.

The winch is designed to operate under the following conditions:

• environment - non-explosive;
• ambient temperature: +40°С - 40°С;
• operating position - fastening on level ground;
• operating mode – low duty;
• operating voltage – 380 V, current frequency – 50 Hz.

Basic characteristic data

• Pulling force – 5000 kgf
• Rope speed on the first layer – 0.17 m/s
• Drum diameter – 219 mm
• Coiling length of a drum – 250 m
• Electric motor capacity at duty cycle = 40% - 15 kW
• Rope diameter – 22.5 mm
• Gear unit C2U-400H-50-22MU1, ratio – 50
• Brake TKG-300
• Winch dimensions - 1820х1815х1081 mm
• Winch weight w/o rope, kg – 2060
