PURPOSE

The electric winch TL-9A is designed for lifting and transport operations in construction, installation and other works, as well as for the assembling of construction mechanisms and devices.

The winch is not intended for lifting people.

The winch is designed to operate under the following conditions:

• environment - non-explosive;
• ambient temperature: +40°С - 40°С;
• operating position - fastening on level ground;
• operating mode – low duty;
• operating voltage – 380 V, current frequency – 50 Hz.

Basic characteristic data

• Pulling force – 1250 kgf
• Rope speed on the first layer – 0.5 m/s
• Drum diameter – 219 mm
• Coiling length of a drum – 80 m
• Electric motor capacity at duty cycle = 40% - 7.5 kW
• Rope diameter – 11 mm
• Gear unit 1C2U-200, ratio – 31.5
• Brake TKG-200

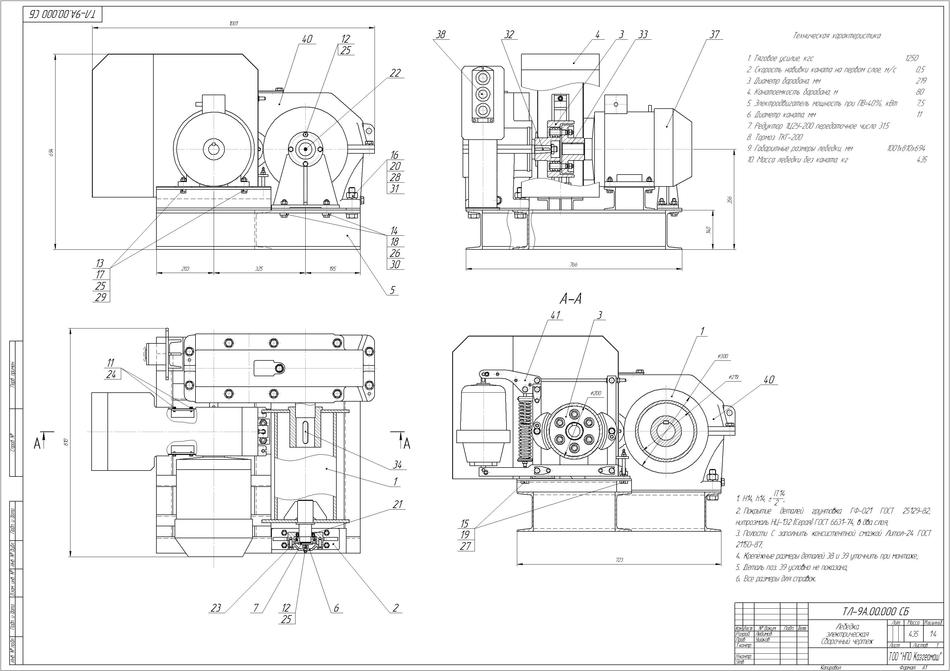

• Winch dimensions - 1002х810х694 mm
• Winch weight w/o rope, kg – 435
